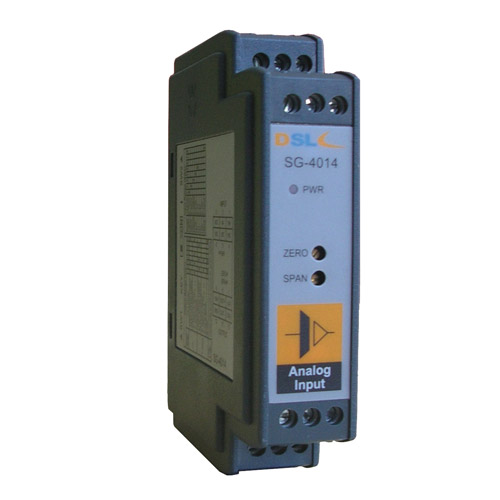

SG-4014

直流輸入/直流/輸出模塊

主要特點

-   1000V（DC）完全隔離
-   寬輸入/輸出范圍
-   簡單的輸入/輸出結構
- DIN導軌安裝
-   低能量消耗，085W（電壓輸出）
-   單路+24Vdc操作
-   溫度范圍：-20℃ ~ 70℃
-   濕度：5% ~ 90%，無凝露

產品型錄

產品介紹
產品規格
檔案下載

直流輸入/直流/輸出模塊

輸入電壓	雙極性：±10mV，±50mV，±100mV，±0.5V，±1V，±5V，±10V 單極性：0~10mV，0~50mV，0~100mV，0~500mV，0~1V，0~5V，0~10V 輸入阻抗：2MΩ 輸入帶寬：2.4KHz
輸入電流	雙極性：±20mA 單極性：0~20mA 輸入阻抗：250Ω
輸出電壓	雙極性：±5V，±10V 單極性：0~10V 阻抗：<50Ω 驅動能力：10mA（Max）
輸出電流	電流：0~20mA 負載：0~500Ω（源）
常規	隔離（3相）：1000VDC 精確度：±0.1%（滿量程）穩定性（溫度漂移）：150ppm 隔離模式抑制：>100dB@50Hz/60Hz 溫度范圍：-20℃ ~ 70℃ 濕度：5% ~ 90%，無凝露
電源	功耗：0.85W（電壓輸出） 1.2W（電流輸出）電壓：24VDC ±10%

（本產品新舊包裝混發）
