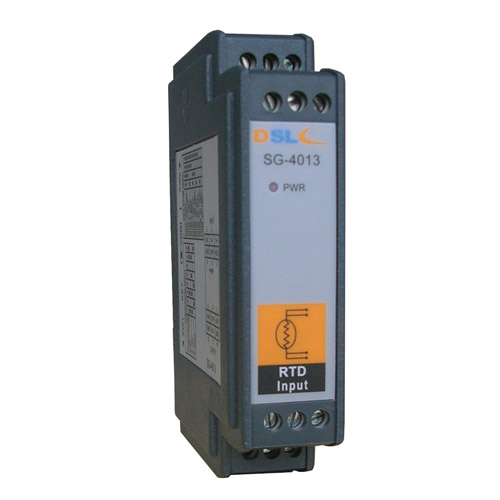

SG-4013

熱電阻輸入/直流輸出模塊

主要特點

-   鉑熱電阻輸入和鎳熱電阻輸入
-   線性輸出量程（V or mA）
-   靈活的DIN導軌安裝
-   1000VDC 3線隔離
-   LED指示電源/信號狀態
-   單路24VDC操作
-   工作溫度：-20℃ ~ 70℃
-   濕度：5% ~ 90%，無凝露

產品型錄

產品介紹
產品規格
檔案下載

熱電阻輸入/直流輸出模塊

輸入量程	Pt100(a=0.00385)	-100~100℃	CU50	-50~150℃
	Pt100(a=0.00385)	0~100℃	CU100	-50~150℃
	Pt100(a=0.00385)	0~200℃
	Pt100(a=0.00385)	0~600℃
	Pt100(a=0.00385)	-100~0℃
	Pt100(a=0.00385)	-100~200℃
	Pt100(a=0.00385)	-50~50℃
	Pt100(a=0.00385)	-50~150℃
輸入接線類型	2/3/4線
輸出量程	0~5V，0~10V，0~20mA
精度	±0.5℃
溫度漂移	±30 ppm（滿量程）
輸入CMR	92dB (Min)
隔離電壓	1000VDC
電壓	24VDC ±10%
帶寬	4Hz
功耗	<0.95W

（本產品新舊包裝混發）
