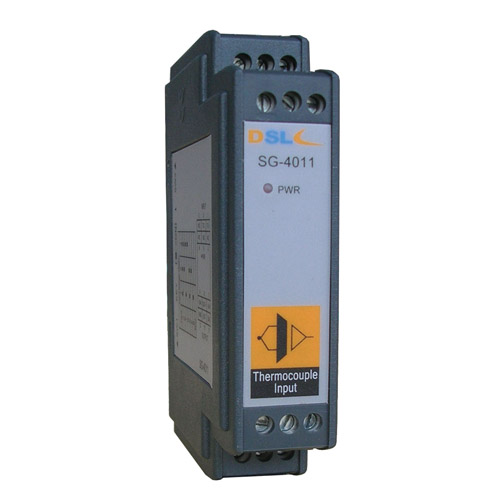

SG-4011

熱電偶輸入/直流輸出模塊

主要特點

- 隔離(3線) 1000Vdc
- 精確度 ±2℃
- CMR 115DB（Min）
- 溫度范圍 -20℃ ~ 70℃
- 濕度 5% ~ 90%，無凝露

產品型錄

產品介紹
產品規格
檔案下載

熱電偶輸入/直流輸出模塊

主要特點

- 隔離(3線) 1000Vdc
- 精確度 ±2℃
- CMR 115DB（Min）
- 溫度范圍 -20℃ ~ 70℃
- 濕度 5% ~ 90%，無凝露

（本產品新舊包裝混發）

輸入類型：

熱電偶類型	溫度范圍	備注
J	-40~760℃	±2℃
K	0~1000℃	±2℃
T	-100~400℃	±2℃
E	0~760℃	±2℃
S	0~1750℃	±4℃
R	0~1750℃	±4℃
B	0~1800℃	±4℃
N	0~1300℃	±4℃

輸出類型

電壓輸出	0~10V
阻抗	0.5Ω

常規

隔離(3線)	1000VDC
精確度	±2℃
CMR	115dB（Min）
溫度范圍	-20℃ ~ 70℃
濕度	5% ~ 90%，無凝露

電源

功耗	1.4W
電壓	24VDC ±10%
