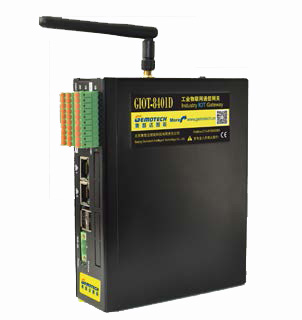

GIOT-8401D

基于freescale I.MX6 系列平臺設計的嵌入式工控機

產品型錄

產品介紹
產品規格
檔案下載

基于freescale I.MX6 系列平臺設計的嵌入式工控機

- 基于ATMEL Cortex A5 CPU
- 4*RS232/RS485，2*CAN，4*USB，2*RJ45
- 支持2G,3G,4G 功能擴展
- 帶擴展接口，可擴展GPS,2G,3G,4G，WIFI 等應用
- 其中GIOT-8401D 為端子型多功能網關，可擴展多種不同功能的子板

功能	描述
處理器系統	CPU	ARM Cortex-A5 SAMA5D3
內存	技術架構	256M，DDR2( 可選512MB）
網絡	控制器	CPU 內部集成2 個網
硬件檢測	看門狗定時器	0~255 秒，提供看門狗例程
存儲	SSD	EMMC 4/8/16GB,NAND FLASH 與EMMC 可選( 默認選用4G NAND)
	SD	1 路Micro SD 座
串口	COMO	DEBUG 口
	COM1-COM6	RS485/RS232 同時支持，均帶隔離保護，雙排端子接口，COM5~6需擴展
USB	2.0 HOST	2路
	MiniPCIE	1 路 MINI PCIE 接口，集成USB 信號，支持2G/3G/4G 通訊卡( 通訊卡用MINIPCIE還是直接焊在板子上，根據成本確定)
	OTG	1路
顯示	TTL LCD	CPU 集成，適合給小尺寸LCD 應用
	觸摸屏	4 線電阻觸摸屏
擴展接口	GPIO	8路
	AD	8 路，CPU自帶
	CAN	2*CAN 總線
	SPI	2 路SPI 接口
	PWM	2 路PWM 輸出
	I2C	1 路I2C 接口
	SDIO	1路
音頻	接口	MIC/ 耳機
	功放	2W@8 歐姆功放輸出
功能按鍵	KEYPAD	擴展上、下、左、右方向按鍵，確定、返回功能鍵
RTC 時鐘		CR2302 可充電電池供電，精度要求：誤差±3. 秒/ 月
其他性能參數
電源	電源類型	DC 9V~28V，支持電源反向及過壓保護
		2Pin 端子供電
	電源功耗	8W
工作環境	工作溫度	-20℃ ~ 70℃
	存儲溫度	-40℃ ~ 80℃
	工作濕度	0% ~ 90% 相對濕度, 無凝露
	存儲濕度	0% ~ 90% 相對濕度, 無凝露
外觀尺寸	尺寸	3.5" 布局
