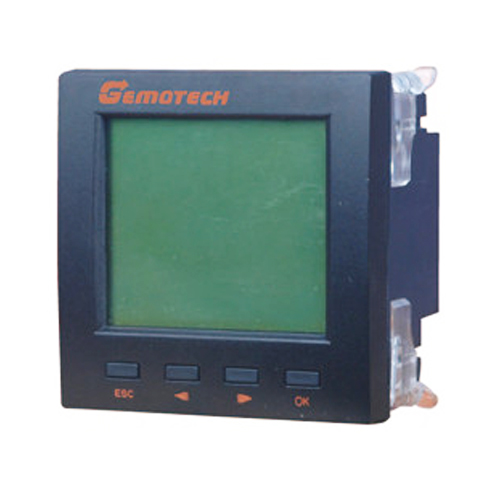

R-8076A

三相電力監測儀表

主要特點

1. 測量三相電流；
　　2. 高清晰LCD 顯示；
　　3. 2 路開關量輸入，1 路4~20mA 模擬量輸出（選配），可
　　以任意關聯所測量的電參量；
　　4. RS485 通信接口，標準Modbus-RTU(Profibus-Dp 選配）。

產品型錄

產品介紹
產品規格
檔案下載

　　產品簡介
　　R-8076A 系列電力監測儀表用于電網、自動化控制系統，
　　采用交流采樣技術真有效值測量，主要測量三相電流，具有
　　2 路遙信量采集功能、1 路4~20mA 模擬量輸出功能（選配），
　　本系列儀表可與上位機數字通訊，強抗干擾RS485 通訊接
　　口，支持標準Modbus-RTU 通訊協議(Profibus-Dp 選配），
　　共同構成智能配電系統。

技術參數

項目		參數
電流	額定值	AC 5A( 或AC 1A)（訂貨時請注明）
	過負荷	持續：1.2 倍，瞬時：10 倍/1s
	功耗	<0.4VA( 每相）
	阻抗	<20mΩ
	精度	RMS 測量，精度等級±0.5%
顯示		LCD 顯示
開關量輸入	輸入數量	2DI
	輸入形式	光耦隔離，無源空接點輸入
	隔離電壓	2500Vrms
模擬量輸出（選配）	輸出數量	1 路
	輸出方式	4~20mA, 精度：±0.5%
	帶載能力	≤ 500Ω
外形重量	尺寸	96mm96mm85mm( 長* 寬* 深）
外形重量	重量	0.3kg

Driver

日期	說明	版本	操作系統	下載

Manual

日期	說明	版本	操作系統	下載
2015/02/10	用戶手冊R-8076A			下載
