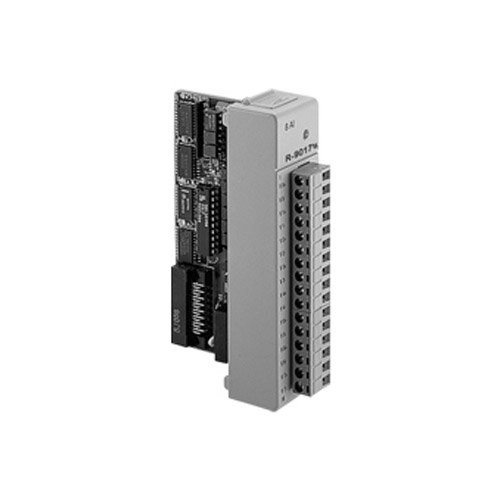

R-9017UH

8路模擬量輸入模塊

主要特點

- 通道 8路差分
- 有效分辨率 12 位
- 輸入類型 mV, V, mA
- 輸入范圍 ±10V,0～+10 V，0～20 mA，4～20 mA
- 隔離電壓 3000VDC

產品型錄

產品介紹
產品規格
檔案下載

8路模擬量輸入模塊

主要特點

- 通道 8路差分
- 有效分辨率 12 位
- 輸入類型 mV, V, mA
- 輸入范圍 ±10V,0～+10 V，0～20 mA，4～20 mA
- 隔離電壓 3000VDC

（本產品新舊包裝混發）

通道	8路差分
有效分辨率	12 位
積分非線性	±1LSB
差分非線性	±1LSB
低通或高通濾波器	用戶配置
輸入類型	mV，V， mA
輸入范圍	±10V，0～+10 V，0～20 mA，4～20 mA
隔離電壓	3000VDC
采樣速率	200K(單個通道)；35K(8通道)
輸入阻抗	20MΩ(電壓輸入)；120Ω(電流輸入)
帶寬	200KHz
信號輸入帶寬	電壓或電流輸入均為200KHz
精度	±0.1%
CMR@50/60Hz	92db
功耗	1.75W(典型) 2.2W
	每個通道均可設定不同的量程

注意：任意兩個輸入端之間的電壓不可超過±15V

Driver

日期	說明	版本	操作系統	下載

Manual

日期	說明	版本	操作系統	下載
