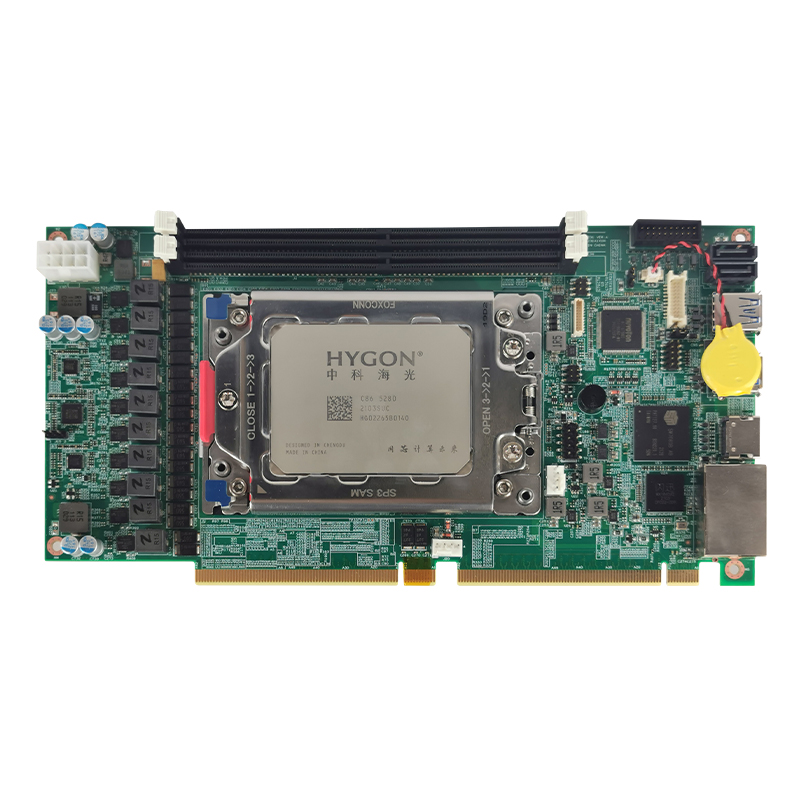

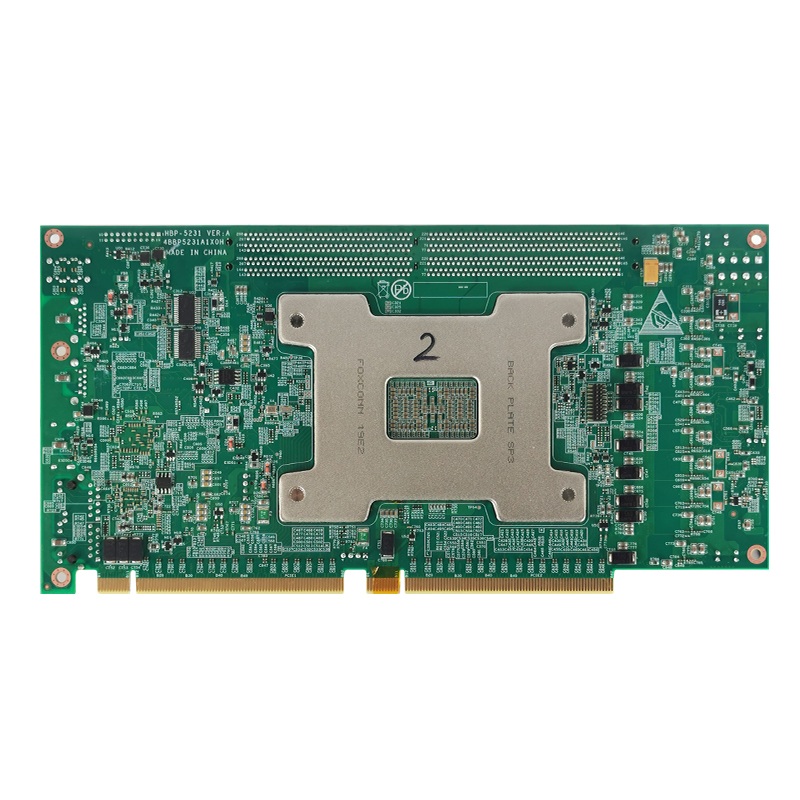

GEH-5231

GEH-5231 是基于X86架構 處理器研發 的工業 單板產 品，支持雙通道DDR4 UDIMM 標 準 插槽 , 可支持到64GB/2666MHz。具備 1 路 HDMI 高清顯示輸出、2 路 SATA 硬盤、2 路串口、2 個 USB 3.0 插座及 2 個千兆網口通用 I/O 接口，配合不同的擴展底板，可實現不同的工業應用解決方案。

產品型錄

產品介紹
產品規格
檔案下載

產品特點

◆ 支持 5231處理器 / 8 核 16 線程 / 主頻 2.3GHz

◆ 支持雙通道 DDR4 UDIMM 插槽，單條可支持到 32GB

◆ 支持 32 Lane PCIe 3.0 協議，同時支持 2 路 x16 擴展

◆ 支持 2×USB3.0 / 2×LAN / 2×SATA 3.0 / 1×HDMI

◆ 支持 Win10、Liunx、中標麒麟及統信 OS 系統

產品簡介

GEH-5231 是基于X86架構 處理器研發 的工業 單板產 品，支持雙通道 DDR4 UDIMM 標 準 插槽 ,可支持到64GB/2666MHz。具備 1 路 HDMI 高清顯示輸出、2 路 SATA 硬盤、2 路串口、2 個 USB 3.0 插座及 2 個千兆網口通用 I/O 接口，配合不同的擴展底板，可實現不同的工業應用解決方案。

CPU	5231 8核 16線程，2.3GHz
內 存	2 × DDR4 UDIMM 2400 / 2666 MHz 單條可支持到32GB
顯示	1 × HDMI 分辨率 1920×1080@60Hz
網 口	2 × Intel I211 千兆
USB	2 × USB3.0
存儲	2 × SATA3.0 板載接口
串口	2 × RS-232 板載插針
GPIO	4DI 4DO 板載插針
I/O 接口	2 × USB3.0 2 × LAN 1 × HDMI
擴展接口	支持 2 路 PCIe x16 擴展
操作系統	Win10、Linux、中標麒麟、統信 OS
BIOS	百敖
尺寸	248.3mm（L） x 126.4mm（W）
電源輸入	+12V / +5V / +3.3V 支持 AT/ATX 模式
工作溫度	0 ~ 60 ℃
存儲溫度	-40 ~ 80 ℃
工作濕度	40℃，95% 相對濕度，無凝結
